Gear Meters
JV-BB Gear Meter
The JV-BB (ball bearing) Series of Positive Displacement Flow meters maintain 0.5% accuracy over the full range of the meter, high resolution, and pressure rating up to 6,000 psi. These PD meters are available in 3 body materials (Aluminum, 303 SS, and 316L SS) and were designed for measuring lubricating and nonabrasive fluids with low or medium viscosity.
Built To Deliver Accurate, Reliable Flow Data In the Format You Need
The JV-BB Positive Displacement Flow Meter is part of AW-Lake’s “Next-Generation” line of Gear Meters and is the result of decades of experience, listening to customers and extensive and diligent study of the latest technologies available. These high performance flow meters have tighter machining tolerances, higher resolution, higher pressure rating, and improved accuracy over their predecessor the JV-KG meter and as a result, reduce operational costs. This meter maintains high accuracy and repeatability, despite changing viscosity conditions, up to ±0.25% accuracy with select sensors. Applications well suited to the JV-BB meters include chemical injection & dosing systems, fuel measurement, test stands, hydraulic positioning systems, and coolant & lubrication monitoring.
The JV-BB positive displacement flow meters build upon the performance you expect from AW-Lake and take ease-of-use and durability to the next level, offering greater efficiencies in operation with higher resolution, higher standard pressure rating (up to 6,000 psi), wider turndowns, and improved accuracy – even in changing viscosity conditions.
Eliminate Waste – Maintain repeatable and accurate flow measurement, independent of changing fluid conditions. Track and report usage to quantify product/process quality, pump performance, or material levels.
Reduce Costs – By using the correct amount of expensive/costly fluids in your process and not overdosing, you can reduce material costs. And with proper lubrication or chemical dosing you can reduce maintenance costs.
Improve Product Quality – With flow meters that can ensure ±0.1% repeatability, you are able to maintain consistency in your processes by assuring each batch is the same. Despite long and continuous operation, these meters perform at the same level month after month… year after year.
Operate with Ease – Paired with our smart EDGE family of flow sensors there is one easy to learn set-up procedure available via phone or PC app. Our friendly & knowledgeable staff of Application Engineers are here to help you select the right meter and get you up and running quickly.
Enjoy Flexibility – The JV-BB gear meters were designed to seamlessly integrate with the EDGE sensors, which are available in local mount sensors or displays that are available in battery, loop, or DC powered units. Choose your output as well: Frequency or Analog (voltage or 4-20mA), or Modbus.
Measuring Accuracy:
± 0.5% over full range with 30cP fluid, ± 0.25% optional with select sensors
Repeatability:
± 0.1%
Flow Measuring Ranges:
JVx-12BB: 0.005 to 0.8 gpm | 7.2 to 1,152 gpd | 0.02 to 3.0 lpm JVx-20BB: 0.02 to 2.0 gpm | 28.8 to 2,880 gpd | 0.1 to 7.6 lpm JVx-30BB: 0.1 to 7.0 gpm | 144 to 10,080 gpd | 0.5 to 26.5 lpm JVx-60BB: 0.1 to 20 gpm | 144 to 28,800 gpd | 0.5 to 75.7 lpm JVx-80BB: 0.5 to 60 gpm | 720 to 86,400 gpd | 1.9 to 277 lpm JVx-90BB: 1.0 to 120 gpm | 1,440 to 172,800 gpd | 3.8 to 454 lpm
Wide variety of options: see “Choose Your Sensor” tab for details
AW-Lake offers a wide variety of electronics options to pair with your flow meter, including Frequency, Analog, Modbus, HART, EX-rated, High Temp, Wireless, Bluetooth, Fiber Optic, and more. If you’re not sure what you need, reach out and we can help you!
EDGE Family of Electronics:
When paired with the EDGE Family of flow electronics, the “Next Gen” meters give you your flow data in the format you need, delivered seamlessly to your PLC, PC, remote display, or smart phone. These easy to deploy EDGE sensors and displays offer innovative signal processing, increased accuracy from linearization, and flexibility to choose the output you need (pulse, analog, or Modbus). Enterprise Flow Data Delivery with an EDGE.
The JV-BB and its predecessor JV-KG have been installed on hundreds of chemical injection skids throughout the Gulf of Mexico and beyond for decades. The robust construction and resilient materials of construction lend this meter perfectly to this application. With high accuracy and tolerance of pulsing flows, this meter out-performs the competition in some of the harshest environments in the world.
The JV-BB gear meter is ideal for hydraulic test stands due to its high accuracy and repeatability, which ensure precise measurement of fluid flow under varying conditions. Its robust design withstands the high pressures and temperatures typical in hydraulic systems. It can handle a wide range of viscosities and flow disturbances and its compact size and lack of need for straight run installation make it versatile and easy to integrate into complex hydraulic setups.

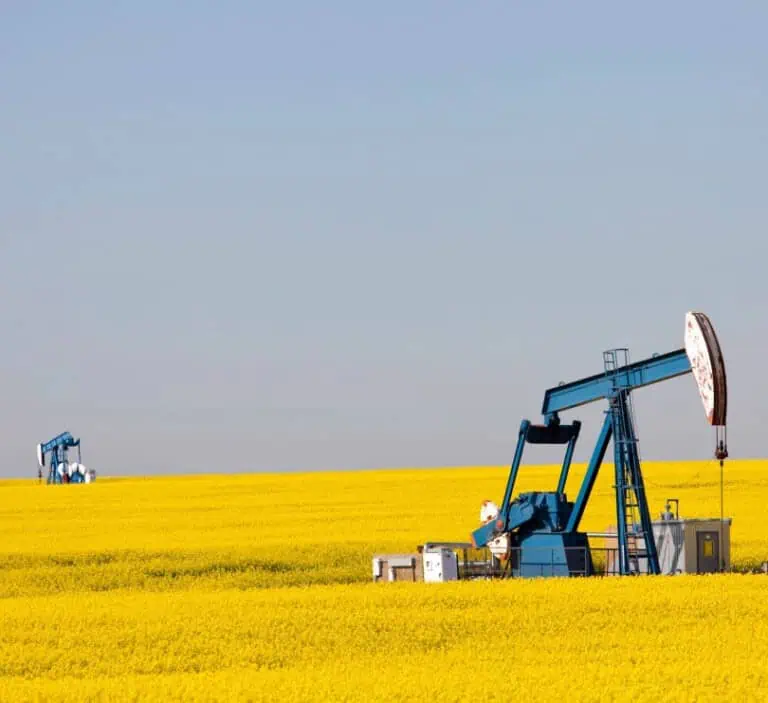

Onshore Chemical Injection Systems
Although onshore chemical injection systems are installed on land, at ground level, and in more stable conditions, they are still exposed to weather, varying temperatures, dust, and potential exposure to industrial pollutants. The JV-BB gear meter is still the best choice for its high accuracy and repeatability for consistently precise dosing of the valuable chemicals. Additionally, they handle a wide range of viscosities and flow rates.
Marine Fuel Monitoring
The JV-BB gear meter is ideal for marine fuel monitoring due to its robust construction, ensuring durability in harsh environments. Its repeatable accuracy ensures consistent measurements, crucial for fuel management. Unlike many meters, it doesn’t require a straight run for installation, offering flexibility in the often confined spaces of marine vessels. Additionally, its ability to detect flow in both directions ensures reliable monitoring, making it perfect for comprehensive marine fuel management systems.
The JV-BB and its predecessor JV-KG have been installed on hundreds of chemical injection skids throughout the Gulf of Mexico and beyond for decades. The robust construction and resilient materials of construction lend this meter perfectly to this application. With high accuracy and tolerance of pulsing flows, this meter out-performs the competition in some of the harshest environments in the world.
The JV-BB gear meter is ideal for hydraulic test stands due to its high accuracy and repeatability, which ensure precise measurement of fluid flow under varying conditions. Its robust design withstands the high pressures and temperatures typical in hydraulic systems. It can handle a wide range of viscosities and flow disturbances and its compact size and lack of need for straight run installation make it versatile and easy to integrate into complex hydraulic setups.
Onshore Chemical Injection Systems
Although onshore chemical injection systems are installed on land, at ground level, and in more stable conditions, they are still exposed to weather, varying temperatures, dust, and potential exposure to industrial pollutants. The JV-BB gear meter is still the best choice for its high accuracy and repeatability for consistently precise dosing of the valuable chemicals. Additionally, they handle a wide range of viscosities and flow rates.
Marine Fuel Monitoring
The JV-BB gear meter is ideal for marine fuel monitoring due to its robust construction, ensuring durability in harsh environments. Its repeatable accuracy ensures consistent measurements, crucial for fuel management. Unlike many meters, it doesn’t require a straight run for installation, offering flexibility in the often confined spaces of marine vessels. Additionally, its ability to detect flow in both directions ensures reliable monitoring, making it perfect for comprehensive marine fuel management systems.
We work with you to increase process efficiency, reduce costly production down-time, establish real-time monitoring and control, and provide the critical tracking and record keeping necessary to meet EPA regulations.
