This flow meter is made from superior materials of construction for high performance in aggressive environments. The modified upstream and downstream flow straighteners allow for a higher accuracy and greater fluid dynamics.

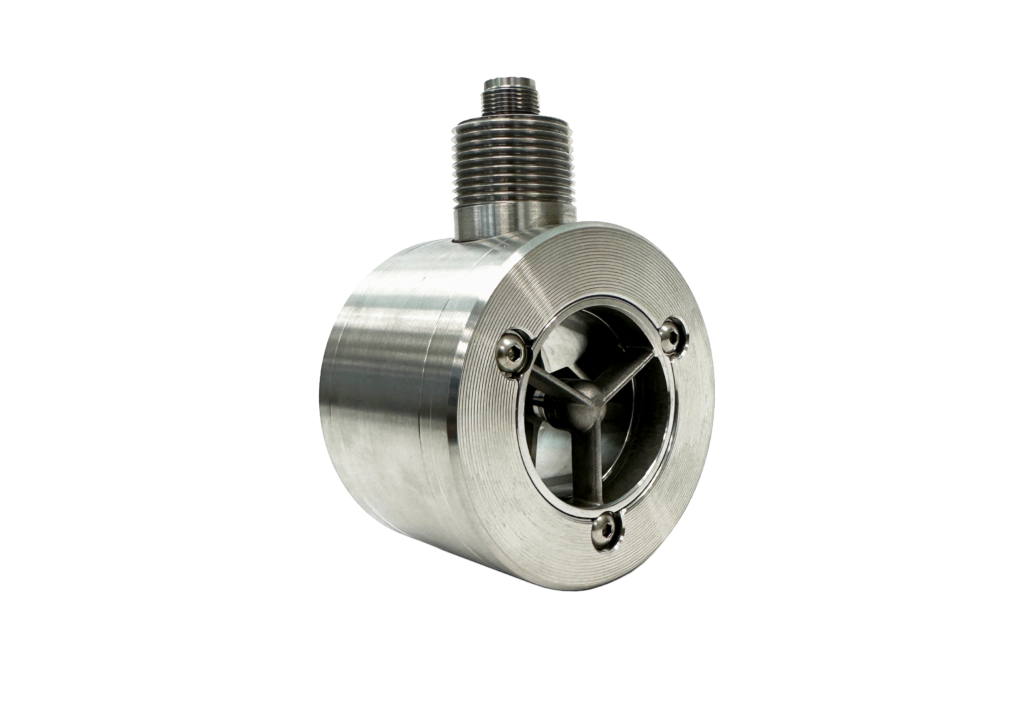

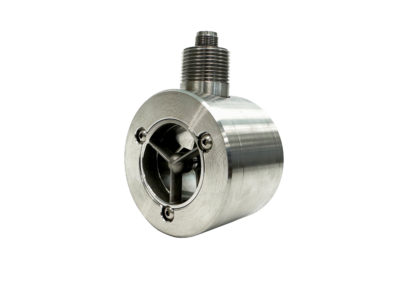

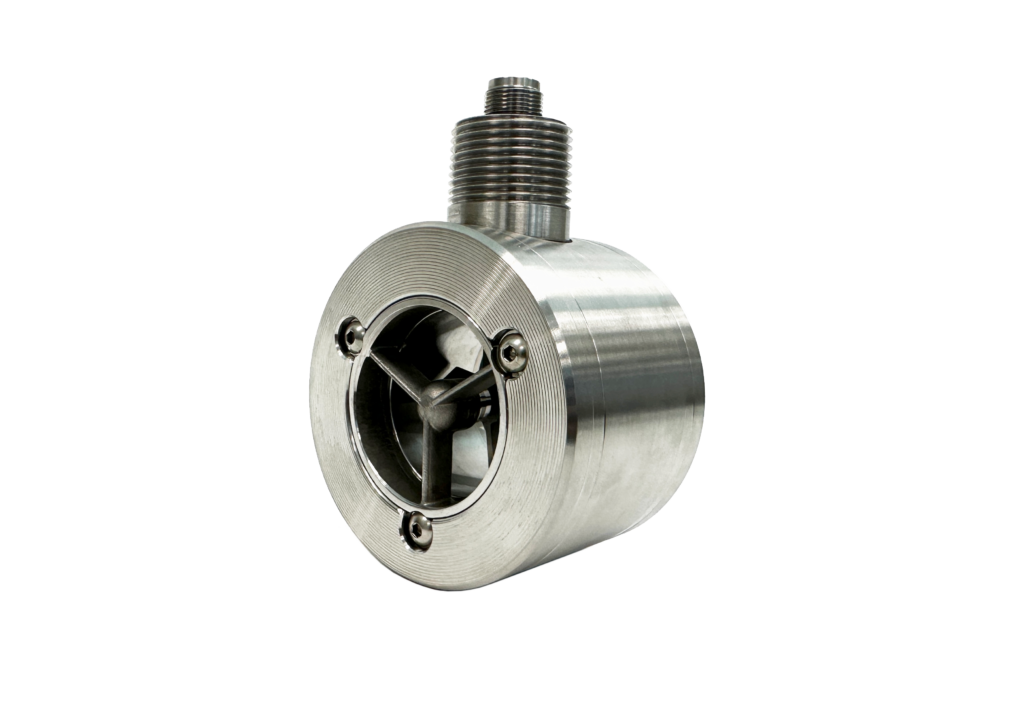

The TR-QS Wafer Style Turbine flow meter is made from superior materials for high performance in aggressive environments. The wafer style mounting configuration eliminates the need for mating flanges, resulting in lower costs and simplified installation. The modified upstream and downstream flow straighteners allow for a higher accuracy and greater fluid dynamics.
Key features
-
Easy installation:Wafer style mounting configuration eliminates the need for mating flanges
-
Smart design:Compact design for use in tight spaces
-
Seven flow ranges:From 5 to 5000 GPM
-
Line sizes:Capable of measuring flow in line sizes from 1” to 10”
-
EX-ratings:Explosion proof options available
-
Description
Accurate & Reaptable: The TR Series turbine meter is accurate to ±1% of reading with repeatability of better than ±0.1%.
Smart & Simple Design: Unique design eliminates the need for mating flanges, resulting in lower costs and simplifying installation. Space-Saver Wafer-style mounting configurations for limited space requirements.
High Performance: This flow meter is made from superior materials of construction for high performance in aggressive environments.
Improved Accuracy: The modiffied upstream and downstream flow straighteners allow for a higher accuracy and greater fluid dynamics.
Measuring Accuracy:
± 1.0% of reading or better
Repeatability:
± 0.1%
Flow Measuring Range:
5 to 5,000 GPM (gal/min) (per flange rating of install kit)
Maximum Operating Pressure:
Refer to ASME/ANSI B16.5-1996
Maximum Operating Temperature:
Fluid temperature of -150° to 300°F
End Connections:
Wafer-style ASME/ANSI B16.5-1996
Threaded, Flange, Graloc & VictaulicMaterials of Construction:
Body: 316 Stainless Steel
Rotor Support: 316 Stainless Steel
Rotor Shaft: Tungsten Carbide
Rotor: Stainless Steel
