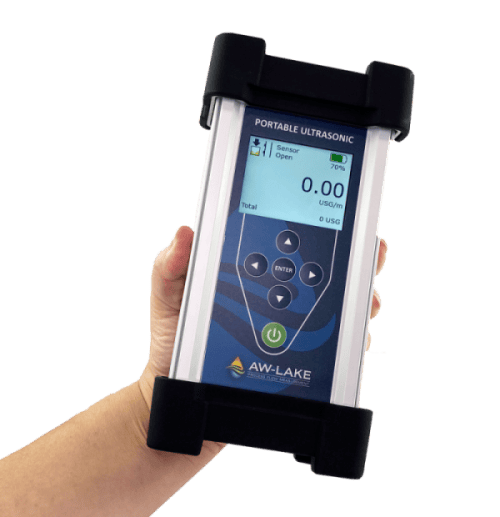

Non-contact ultrasonic flow meters for accurate, instantaneous mass & volumetric flow rate measurement of clean, non-aerated fluids in full pipes such as water, chemicals, and oils.
Flow Electronics
Electronics coupled with our mechanical flow meters deliver flow data in your preferred format, whether a local display, remote transmitter, or simple pickup.
Rotary Piston
Rotary Piston positive displacement flow meters are ideal for use in applications with very low flow rates and high pressures, such as offshore chemical injection applications.
Turbidity Sensor
AW-Lake's ProScan Turbidity Sensor is ideal for detection of material transitions, monitoring turbidity, and measuring product concentration, such as in dairy processing, juice processing, and brewing operations.
Fluid Power / Hydraulics
Flow meters used to monitor flow readings in fluid power systems are essential to properly monitoring your process, diagnosing system errors, and ensuring system performance. Our expertise in this area goes back decades with numerous flow meters for the hydraulics and fluid power system industry.
Oil & Gas
From corrosive subsea environments, offshore production platforms, onshore oil fields, or refineries we have the flow expertise to tackle these tough jobs. Difficult oil and gas flow metering challenges like high pressures, pulsating flows, corrosive media and harsh environments are our daily business.
Heavy Industrial
For challenging industrial environments like mining, steel & paper mills, and industrial vehicles we offer flow meters with easy flow paths to run thick materials, rugged meter bodies that handle extreme conditions and designs with high shock and vibration resistance.
Paints/Sealants/Adhesives
Automotive plants and their Tier-1 suppliers have been using AW-Lake flow meters for 40+ years to monitor usage of paints, coatings, adhesives, lubricants, and other fluids to maintain strict process control and manage operational costs. Flow meters in these areas must be capable of measuring a wide range of materials.
Water Cooling
Monitoring process cooling systems, including industrial cooling circuits and HVAC systems, helps maintain your plant or building efficiency, conserve energy, and improve the bottom line. Constant monitoring and control of these systems can easily be done using flow monitoring and control instrumentation from AW-Lake.
General Industrial
General industrial plants around the world have been using AW-Lake flow meters to maintain their process operations, plus they have integrated our meters as a vital part of their end product. Our broad portfolio of flow measurement equipment provides solutions to your paint operations.
Test Systems
With increasing product complexity, tighter regulations, and growing demands on companies to reduce operating costs and improve product quality, there is more focus on test and measurement procedures and equipment.
Alternative Energy
As the world shifts towards sustainable practices, the demand for efficient energy production methods intensifies. AW-Lake flow meters are used in many ways within renewable energy sectors such as solar, wind, hydro, and biofuels.
Marine
In a field where fuel consumption attributes to most of the total operating costs, it is critical for marine ship owners and operators to monitor their fuel systems. Accurate fuel consumption is key to understanding how and where to find areas to improve efficiency and control costs.
Chemical
AW-Lake understands the challenges and intricacies of chemical / petrochemical process monitoring with flow meters. We have the depth of experience with corrosive, aggressive liquids and gases that you need in your flow measurement partner.
Environmental
As the the world continues to examine ways to lesson our impact on the environment and develop new technologies to support those efforts, flow measurement enters the conversation more and more.
Aerospace
AW-Lake flow meters are trusted in the aerospace and aviation industry, where they ensure precise measurement and control of fuel, hydraulic fluids, and other critical liquids and gases. They play a vital role in maintaining optimal performance, ensuring safety, and enhancing fuel efficiency.
The FlowPod flow indication display unit utilizes state-of-the-art technology and comes in a compact, light weight, flame proof Stainless Steel enclosure. Measuring only 3.35” in diameter and weighing only 3.5 lbs., the FlowPod is one of the smallest flow displays for the Chemical injection industry on the market today. The back-lit display (4-wire only) with high contrast ratio large flow rate indication and totalizer digits, enables the display to be easily read at distance in poorly lit conditions.
Temperature Rating:
-20 to +75°C
Output:
2 or 4 wire 4-20mA
Communication Protocol:
HART 7 programming and monitoring
Features:
Compact lightweight 316 stainless steel housing
Rotatable through 360° for optimized viewing angle
Sensing Options:
Standard and hi-res – both with bidirectional sensing
Data Storage:
Removable LM-MC storage card for data logging & offsite programming
Programming Options:
- Local Programming
- Resettable and non-resettable Totalizer
- Batch Control
Power:
- 12 – 30 Vdc (Exd)
EX Approvals
CSA, ATEX, and IECEx certification
Pulsing Input Indicator:
This pulses at low flow, as a visual check of flow rate.
Total Digits:
A total of 8 digits with the option to display: non re-settable total, a re-settable total and the re-settable reverse flow total.
Rate Digits:
The large 5 digits display the real time flow rate, the large digits and high contrast allows this to be easily read from a distance in poor light conditions.
Units:
The option to display the flow rate and total in many different units, depending on your requirements.
Flow Range Usage:
Displays the flow rate in 20 steps – programmable.
Real-World Applications
The JV-BB and its predecessor JV-KG have been installed on hundreds of chemical injection skids throughout the Gulf of Mexico and beyond for decades. The robust construction and resilient materials of construction lend this meter perfectly to this application. With high accuracy and tolerance of pulsing flows, this meter out-performs the competition in some of the harshest environments in the world.
Hydraulic Test Stands
The JV-BB gear meter is ideal for hydraulic test stands due to its high accuracy and repeatability, which ensure precise measurement of fluid flow under varying conditions. Its robust design withstands the high pressures and temperatures typical in hydraulic systems. It can handle a wide range of viscosities and flow disturbances and its compact size and lack of need for straight run installation make it versatile and easy to integrate into complex hydraulic setups.
Onshore Chemical Injection Systems
Although onshore chemical injection systems are installed on land, at ground level, and in more stable conditions, they are still exposed to weather, varying temperatures, dust, and potential exposure to industrial pollutants. The JV-BB gear meter is still the best choice for its high accuracy and repeatability for consistently precise dosing of the valuable chemicals. Additionally, they handle a wide range of viscosities and flow rates.
Marine Fuel Monitoring
The JV-BB gear meter is ideal for marine fuel monitoring due to its robust construction, ensuring durability in harsh environments. Its repeatable accuracy ensures consistent measurements, crucial for fuel management. Unlike many meters, it doesn’t require a straight run for installation, offering flexibility in the often confined spaces of marine vessels. Additionally, its ability to detect flow in both directions ensures reliable monitoring, making it perfect for comprehensive marine fuel management systems.
The JV-BB and its predecessor JV-KG have been installed on hundreds of chemical injection skids throughout the Gulf of Mexico and beyond for decades. The robust construction and resilient materials of construction lend this meter perfectly to this application. With high accuracy and tolerance of pulsing flows, this meter out-performs the competition in some of the harshest environments in the world.
Hydraulic Test Stands
The JV-BB gear meter is ideal for hydraulic test stands due to its high accuracy and repeatability, which ensure precise measurement of fluid flow under varying conditions. Its robust design withstands the high pressures and temperatures typical in hydraulic systems. It can handle a wide range of viscosities and flow disturbances and its compact size and lack of need for straight run installation make it versatile and easy to integrate into complex hydraulic setups.
Onshore Chemical Injection Systems
Although onshore chemical injection systems are installed on land, at ground level, and in more stable conditions, they are still exposed to weather, varying temperatures, dust, and potential exposure to industrial pollutants. The JV-BB gear meter is still the best choice for its high accuracy and repeatability for consistently precise dosing of the valuable chemicals. Additionally, they handle a wide range of viscosities and flow rates.
Marine Fuel Monitoring
The JV-BB gear meter is ideal for marine fuel monitoring due to its robust construction, ensuring durability in harsh environments. Its repeatable accuracy ensures consistent measurements, crucial for fuel management. Unlike many meters, it doesn’t require a straight run for installation, offering flexibility in the often confined spaces of marine vessels. Additionally, its ability to detect flow in both directions ensures reliable monitoring, making it perfect for comprehensive marine fuel management systems.
We work with you to increase process efficiency, reduce costly production down-time, establish real-time monitoring and control, and provide the critical tracking and record keeping necessary to meet EPA regulations.
