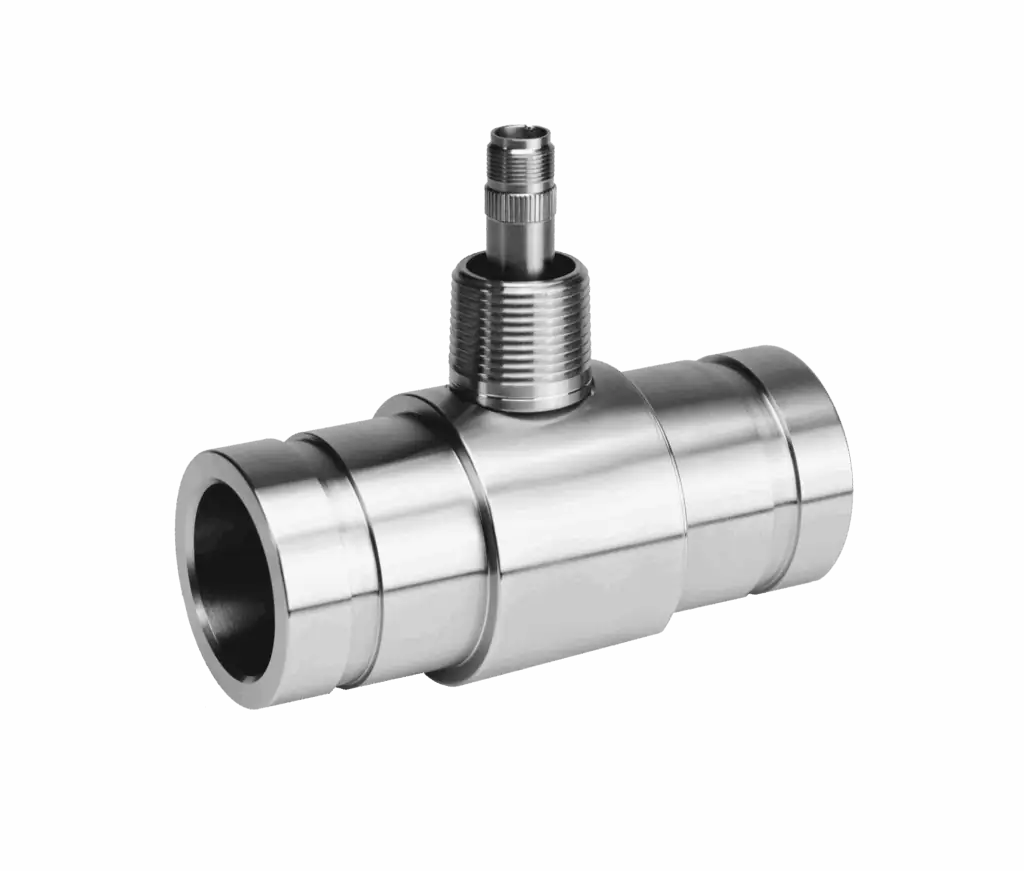

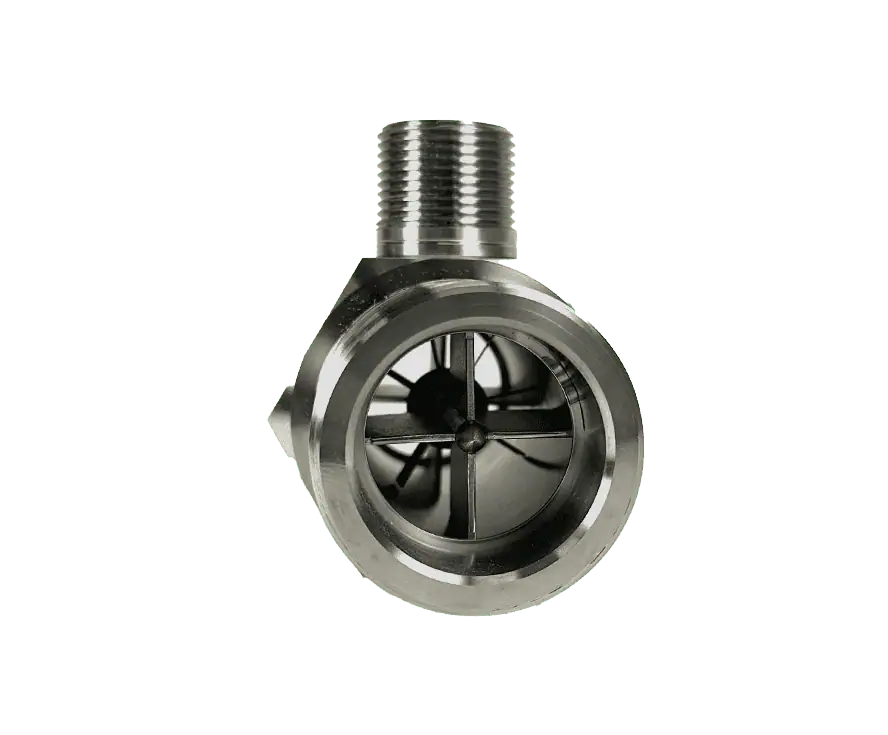

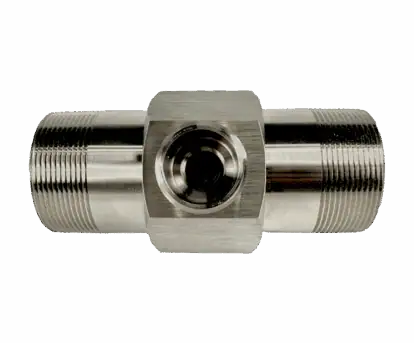

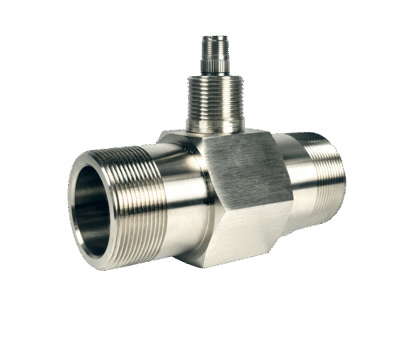

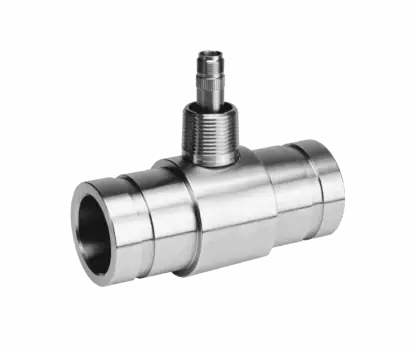

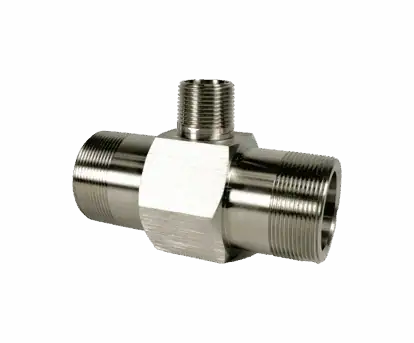

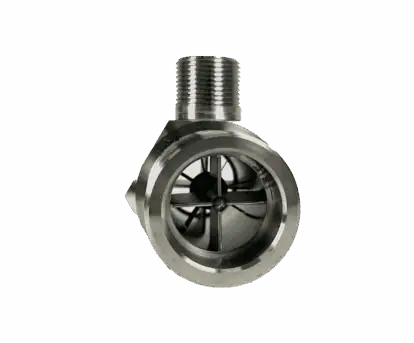

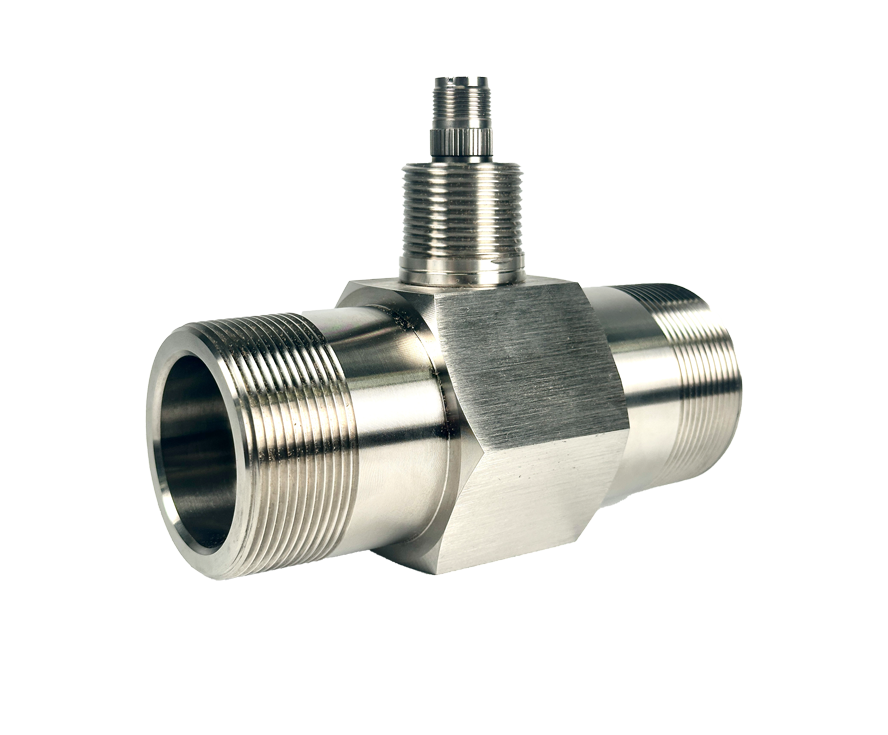

TG Turbine flow meters are widely used for gas flow measurement due to their high accuracy, fast response time, and ability to handle a wide range of flow rates and pressures. Unlike thermal or differential pressure technologies, TG Turbines offer excellent repeatability and are well-suited for clean, dry gases. Their mechanical simplicity and proven reliability make them a preferred choice in industries where precision and durability are critical. Typical applications include:
- Fuel gas measurement for industrial burners and boilers
- Compressed air monitoring in manufacturing plants
- Compressed natural gas (CNG) lines
- Test stands and calibration systems
- Nitrogen and other inert gas usage tracking in packaging and processing
- Engine and turbine performance testing in aerospace and automotive industries
Measuring Accuracy:
±1.0% linearity (density dependent); ±0.1% repeatability over full range
7 Flow Measuring Ranges:
0.5-20 ACFM | 14.15-566.33 LPM
3-30 ACFM | 84.95-849.50 LPM
4-60 ACFM | 113.26-1699.01 LPM
2-90 ACMF | 56.63-2548.51 LPM
15-260 ACFM | 424.75-7362.38 LPM
40-650 ACFM | 1132.67-18,405.95 LPM
75-1250 ACFM | 2123.76-35,396.05 LPM
Maximum Operating Pressure:
15,000 psi (end connection dependent)
Operating Temperature Range:
-450°F to +450°F (up to 850°F with special coil)
End Connections
- Grooved
- NPT
- Flanged
- Wafer
Certifications
- CRN Certified
- ISO 9001
- NIST-traceable calibration
Materials of Construction:
Body: 316L Stainless Steel
Rotor: 17-4 PH Stainless Steel
Ball Bearings: 440C Stainless Steel with self-lubricating retainer
Compatible Sensors & Displays:
- Pulse output sensor (included)
- EDGE Flow Sensor with Bluetooth
- Digital Display: EX rated, flow rate & total, analog and pulse outputs
