Turbine Flow Meters

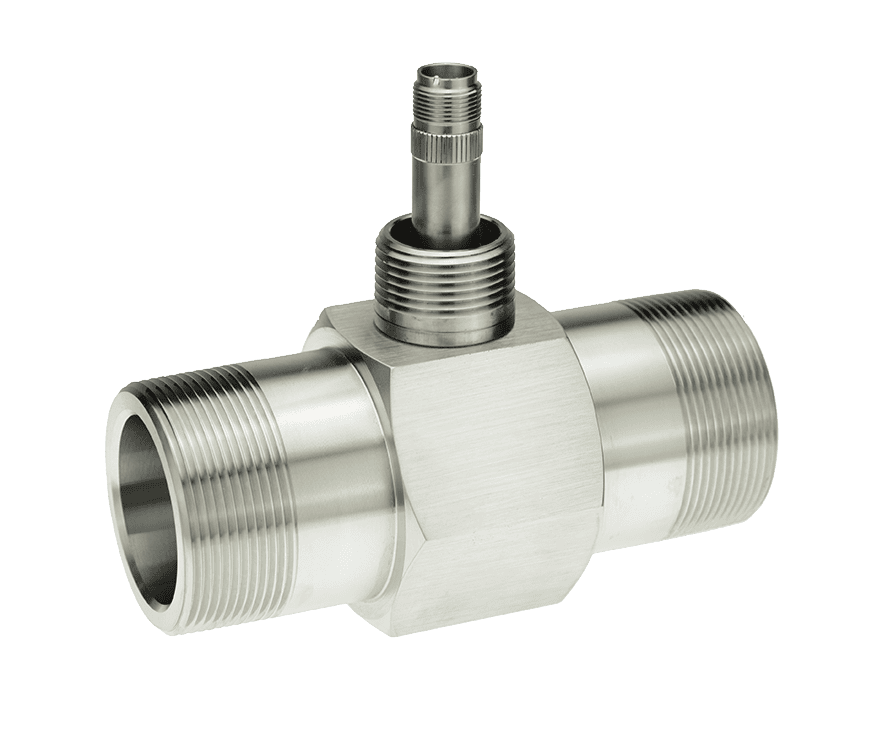

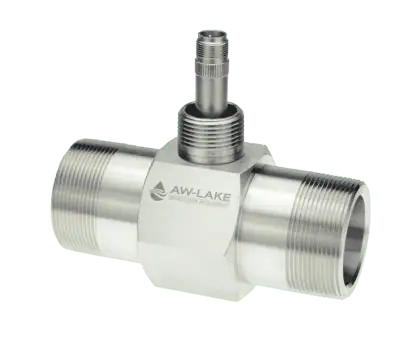

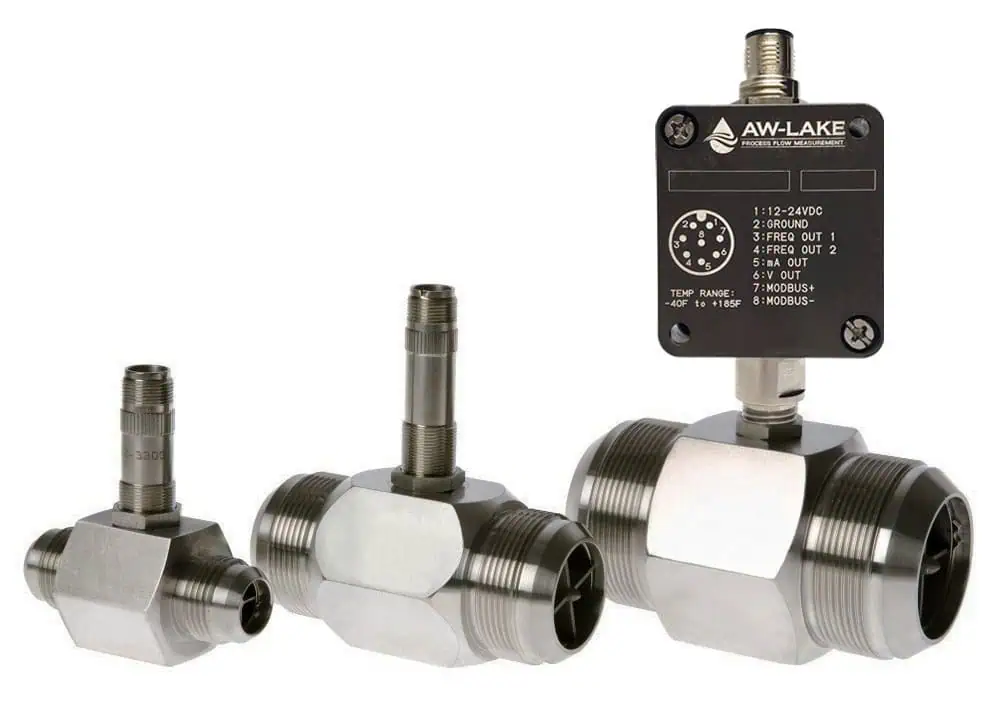

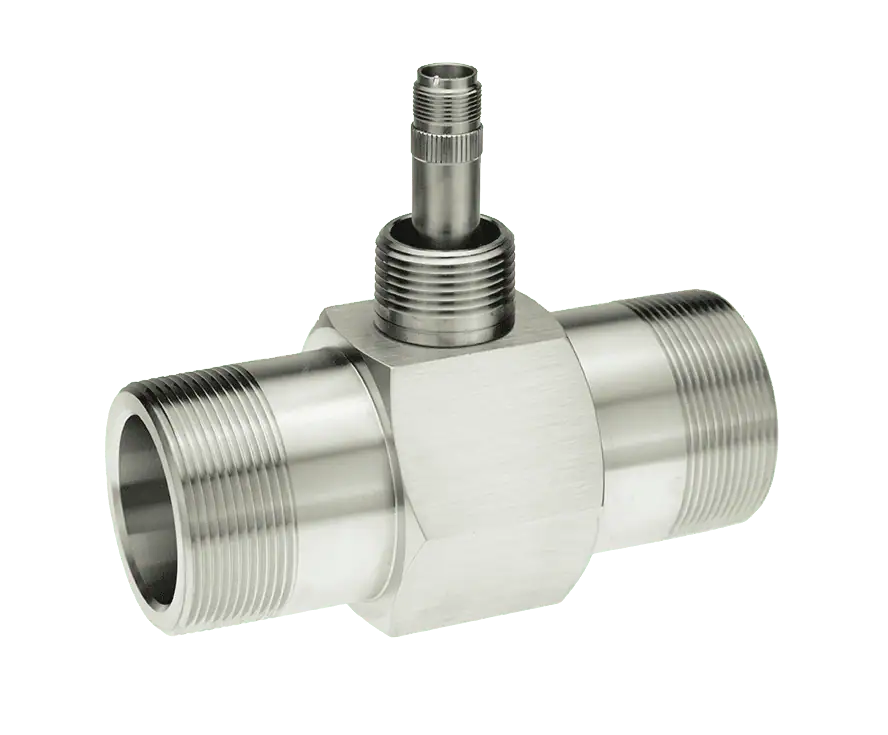

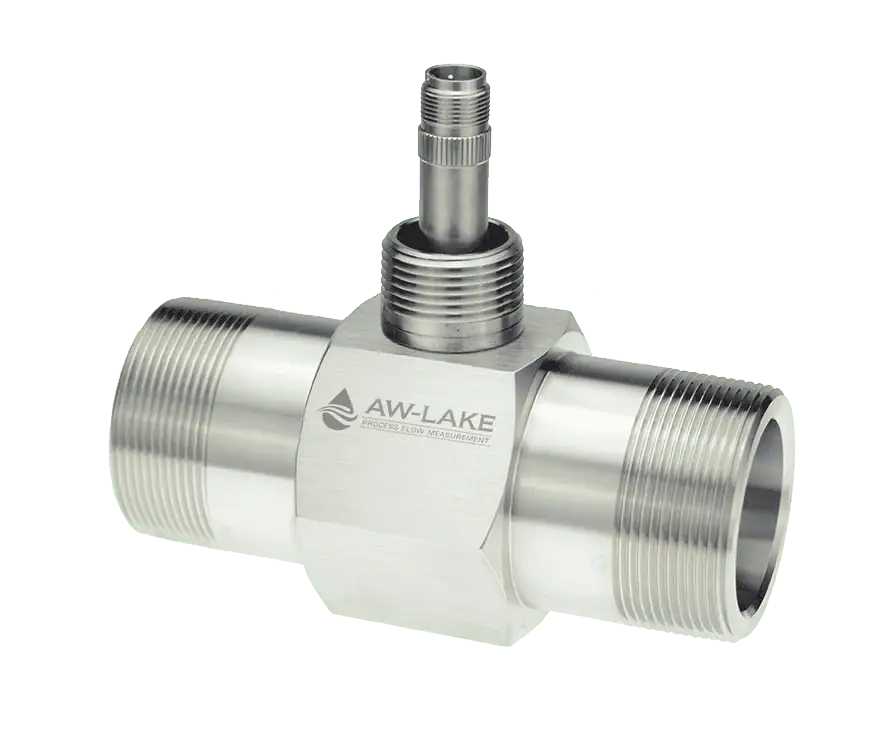

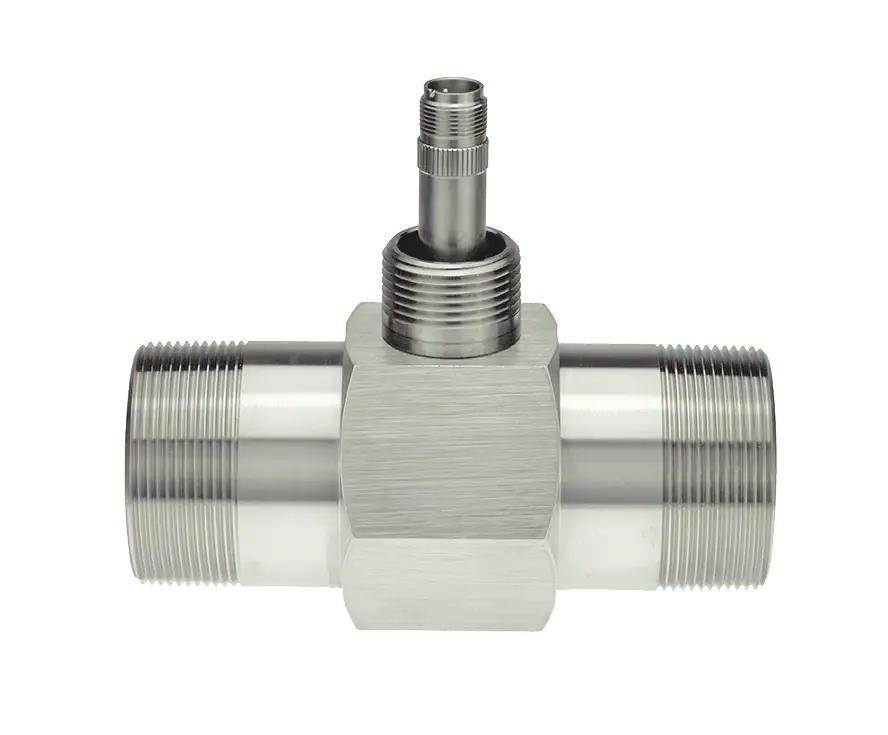

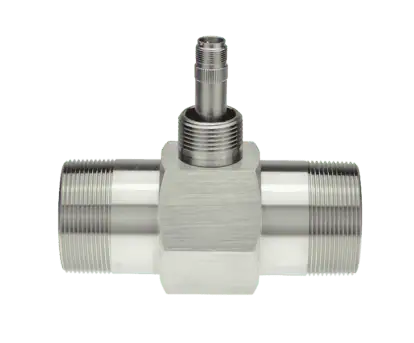

TH Series High Accuracy Turbine Flow Meter
The TH Series Turbine Meter is a compact, high-accuracy meter that is repeatable up to 0.1% accommodating flow rates from 1 to 12,000 gallons per minute.
The TH Turbine Flow Meter is a compact, high-accuracy meter that is repeatable up to 0.1%. This series offers a wide range of meter sizes with internal diameters from 1/2″ up to 12″, accommodating flow rates as low as 1 gallon per minute and up to 12,000 gallons per minute.
The TH Turbine is commonly used in applications and industries requiring highly accurate flow readings and components that are compatible with a variety of specialty chemicals and fluids. Examples include:
Fuel Measurement / Consumption
Blending
Jet fuel
Engine testing
Test stands
Prototype testing
Chemicals / Dosing
Process control
Measuring Accuracy:
±0.5% over standard flow range (for ±0.25% consult factory)
Repeatability
±0.1% over standard range
13 Flow Measuring Ranges:
1-10 GPM | 3.79-37.85 LPM
1.75-16 GPM | 6.62-60.57 LPM
2.5-30 GPM | 9.46-113.56 LPM
4-60 GPM | 15.14-227.12 LPM
6-93 GPM | 22.71-352.04 LPM
8-130 GPM | 30.28-492.10 LPM
15-225 GPM | 56.8- LPM851.7 LPM
40-650 GPM | 151.4-2461 LPM
75-1250 GPM | 284-4732 LPM
200-2900 GPM | 757.1-10,978 LPM
330-5200 GPM | 1249-19,684 LPM
650-8000 GPM | 2461-30,283 LPM
900-12,000 GPM | 3407-45,425 LPM
Maximum Operating Pressure:
up to 20,000 psi (end connection dependent)
Operating Temperature Range:
-450°F to 450°F (up to 850°F with special coil – consult factory)
End Connections
37° AN Flare
NPT

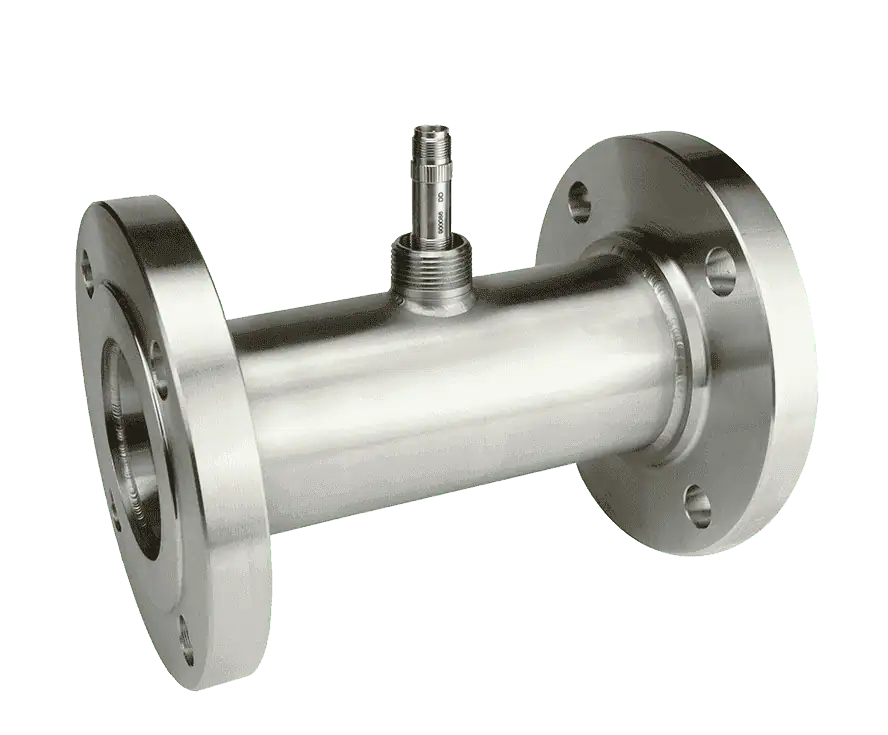

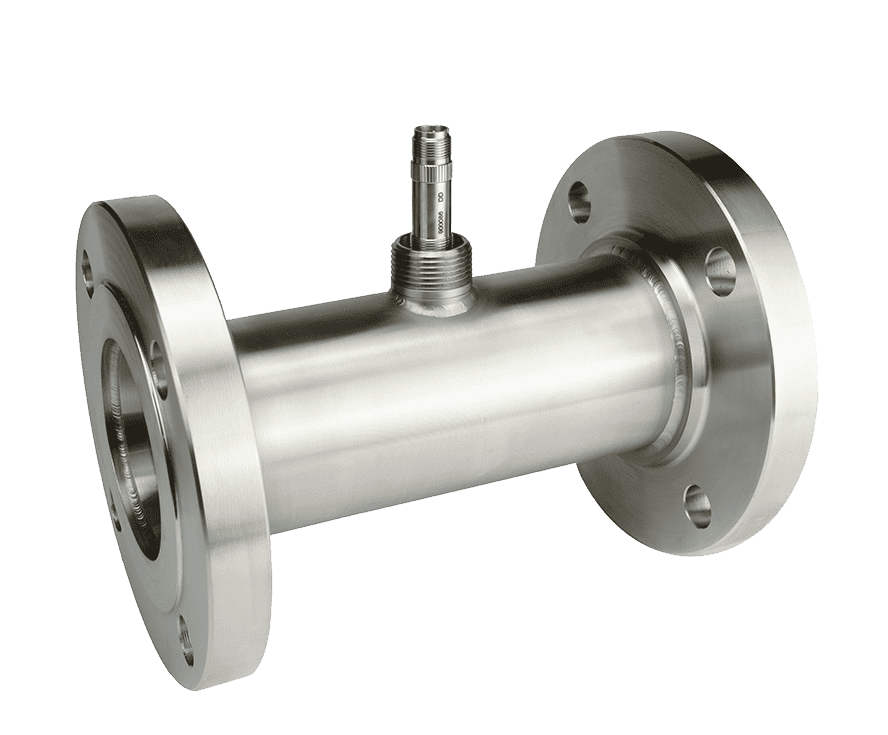

Flanged
Wafer
(consult factory for other options)
Materials of Construction:
Body: 316 Stainless Steel Rotor: 17-4 PH stainless steel, Nickel 200, Duplex stainless steel (consult factory for other options) Ball Bearings: 440C Stainless Steel and Hybrid Ceramic ball bearings, hard carbon composite (consult factory for additional materials available)
