Flow Electronics
The EDGE Flow Sensor

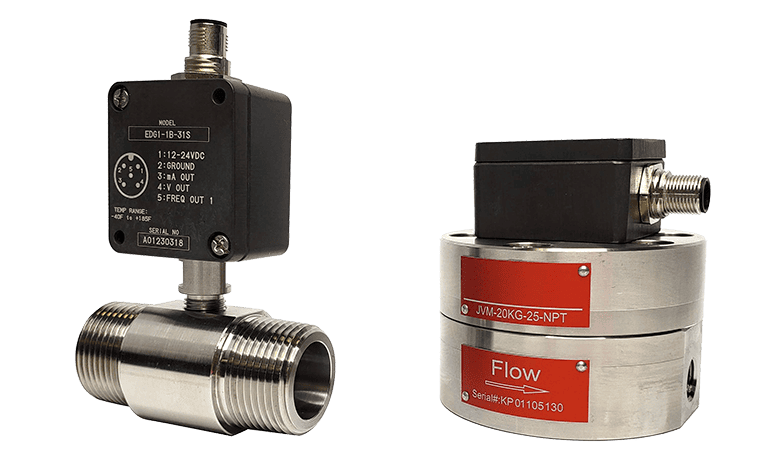

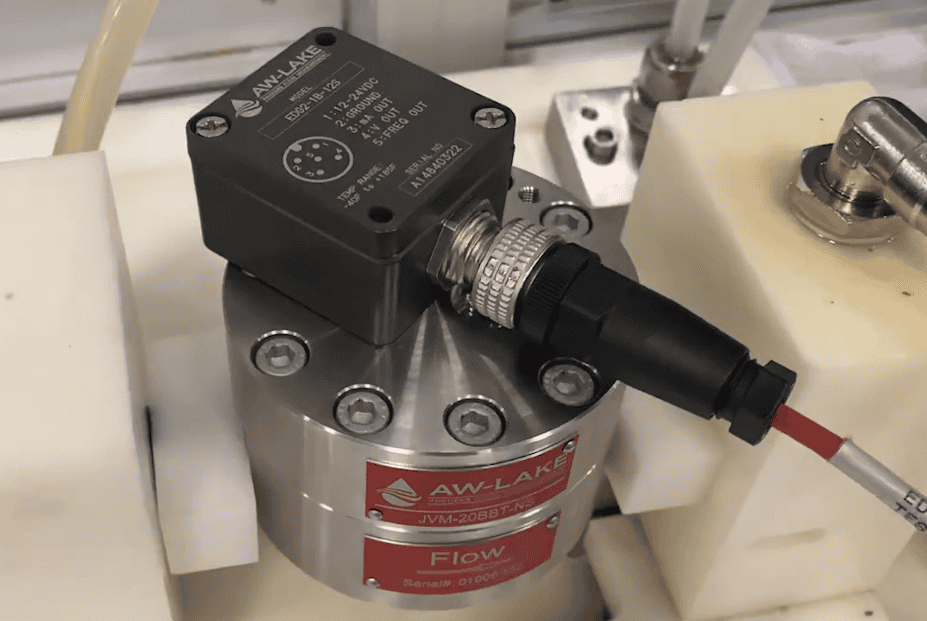

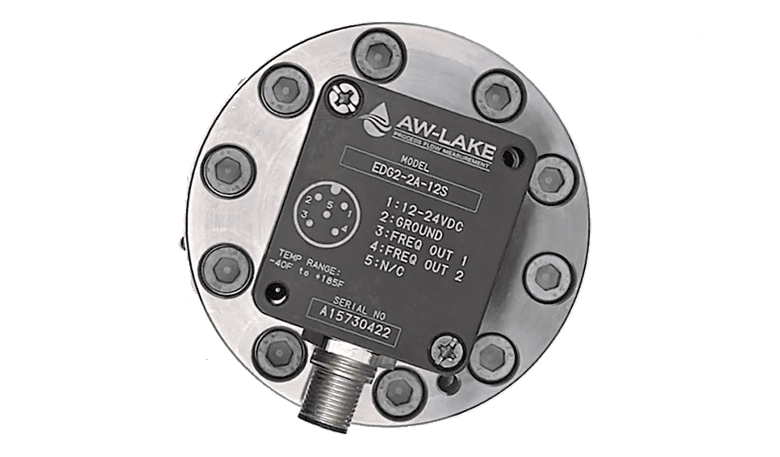

The EDGE flow sensor is the perfect match for any of our gear and turbine positive displacement meters. This sensor easily installs onto all of our meters and can provide multiple signal outputs to work with your system. Depending on configuration this sensor can be a simple pulse output or take it further with analog outputs and real time flow monitoring and troubleshooting with a computer toolkit.
Built upon a foundation of scalability, flexibility, and stability, the EDGE flow sensor provides you better access, understanding, and control of your processes. The innovative signal processing, increased accuracy from linearization, flexibility to choose the output you need (pulse, analog, or Modbus), and incredible ease of use make the EDGE sensor the smart choice to use on your Positive Displacement or Turbine flow meters.
Single User interface and tools with PC Toolkit
Modbus outputs for Turbine & Gear Meters
Data Storage with MicroSD card or pull through Toolkit app
Linearization allowing wider flow range for all meters
Ease of Use
Field upgradeable as new features are added
Set outputs to your preference: Push/Pull, Sinking/Sourcing, Freq/Analog/Modbus
Force outputs for setup or verification
Supply Voltage Range
12-24Vdc ±10%
Max current draw 40-100mA (model-specific, contact factory)
Analog Output Options
4-20mA & 0-10V – Default
0-5V, 1-5V & 2-10V – Available through PC Toolkit
Standard Max Output
±2.5% of max scaling (20.5mA/5.125V/10.25V)
Error Indication
±10% of max scaling (22mA/5.5V/11V)
Analog Output Resolution
16 bit
Analog Output Update Time
100mSec minimum
Ambient Temperature
-40°F to +185°F (-40°C to +85°C)
pulse/frequency output
Push/Pull output – Default
Sinking or Sourcing optional. Set through PC Toolkit.
Excellent Linearity
10-point linearization table available through PC Toolkit
